Structured Packing
High-efficiency corrugated and gauze media for distillation, absorption and stripping — in metal, plastic and ceramic.
Choosing a structured packing material
Structured packing arranges corrugated sheets or wire gauze in ordered layers to give high separation efficiency and low pressure drop — the preferred medium for vacuum and high-purity distillation and for column revamps. The choice of material sets the temperature and chemical limits.
- Parameter
- Max temperature
- Metal
- alloy-dependent
- Plastic
- PP 100 °C / PVDF 150 °C
- Ceramic
- up to 800 °C
- Parameter
- Chemical resistance
- Metal
- grade-dependent
- Plastic
- excellent
- Ceramic
- acid ≥99.5% (excl. HF)
- Parameter
- Efficiency
- Metal
- very high (gauze highest)
- Plastic
- moderate–high
- Ceramic
- high
- Parameter
- Best for
- Metal
- vacuum & temperature-sensitive distillation
- Plastic
- corrosive absorption (HCl, H₂SO₄)
- Ceramic
- corrosive + high-temperature + vacuum
Contact PCX for column sizing, packing selection and volume calculations.
By material

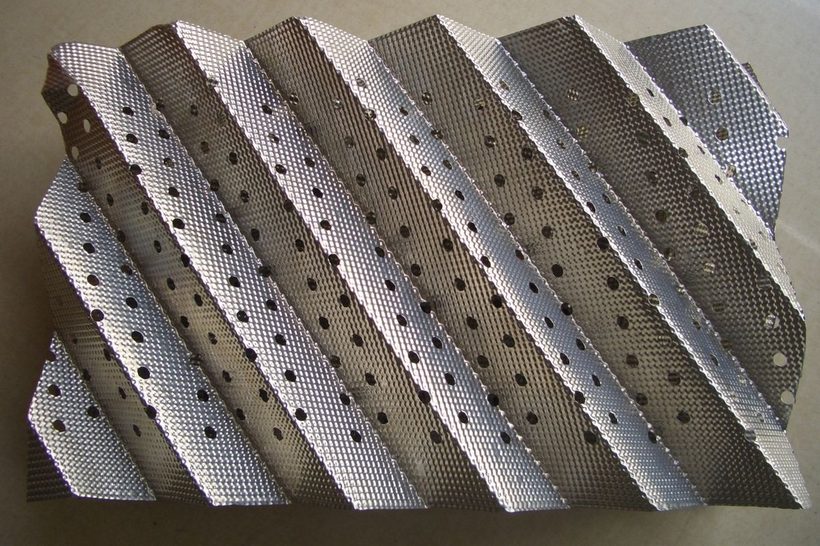

Metal Structured Packing
Corrugated sheet and wire gauze packing in 304/316, carbon steel and special alloys for vacuum and temperature-sensitive distillation.
View details

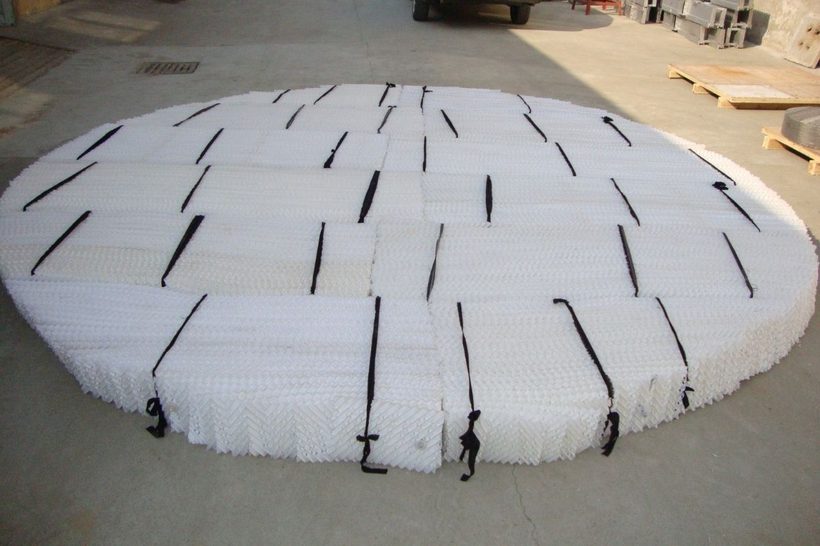

Plastic Structured Packing
Corrugated-plate packing in PP and PVDF for corrosive absorption and high-liquid-load acid service.
View details

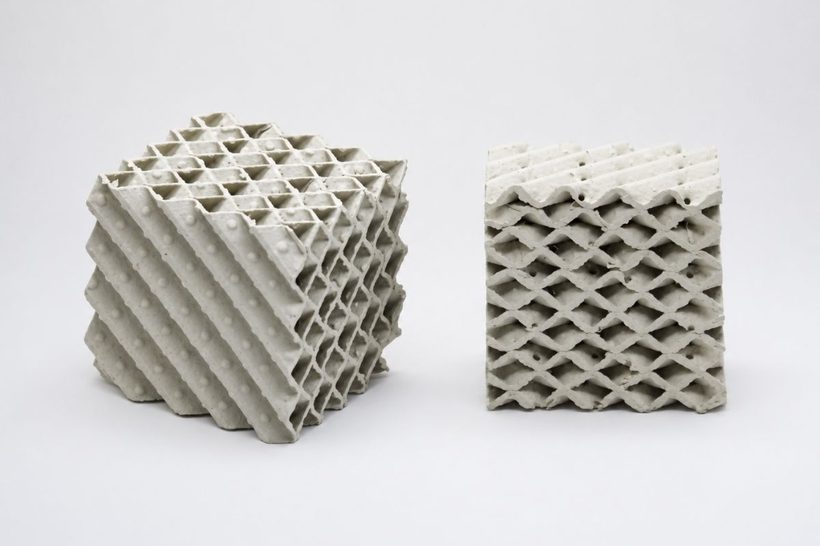

Ceramic Structured Packing
Extruded ceramic corrugated packing (types X & Y) for corrosive, high-temperature and vacuum service.
