06 / ACID RESISTANT BRICKS
Acid Resistant Bricks & Tiles
Acid proof bricks, tiles, and jointing materials for lining towers, tanks, floors, and channels in sulfuric acid and aggressive chemical environments.
ACID PROOF BRICK & TILE

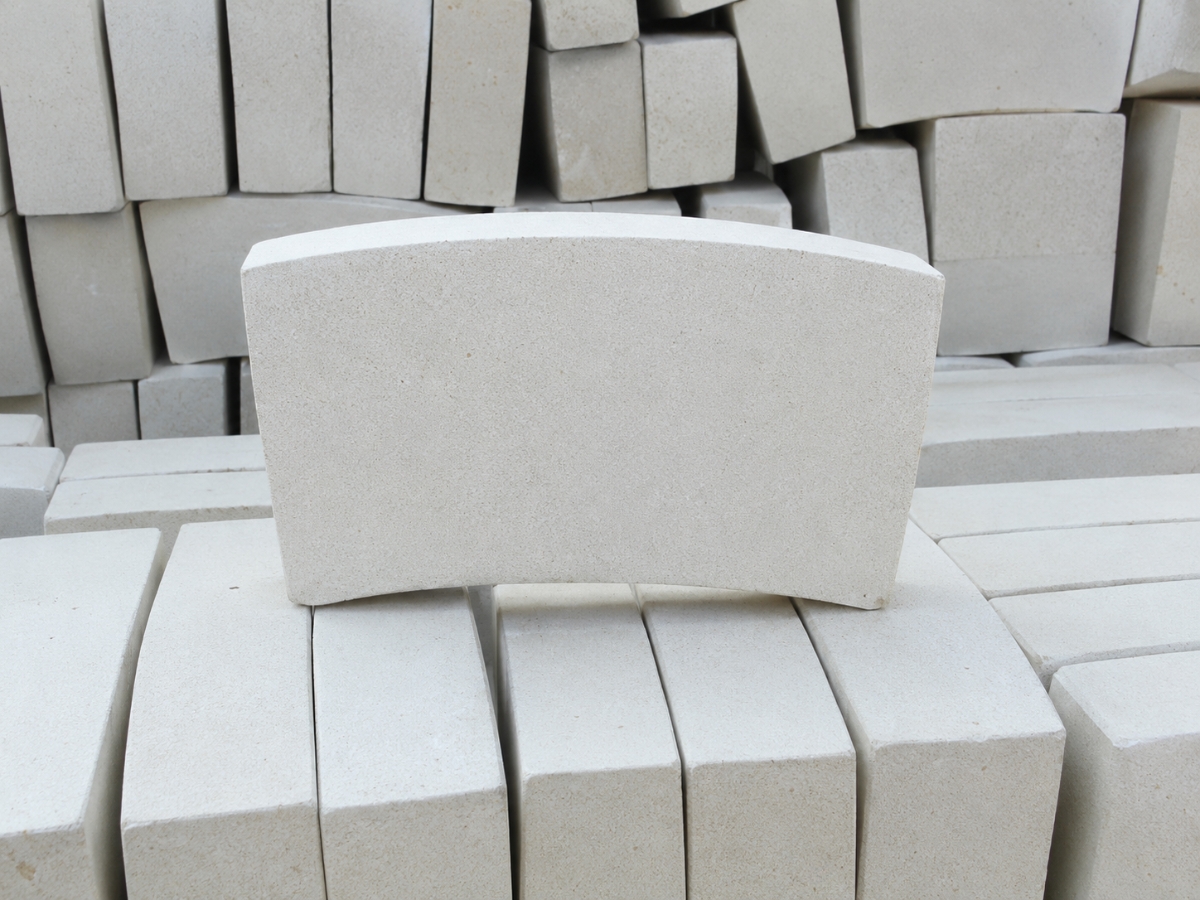

Acid Proof Bricks & Tiles
Dense ceramic bricks and tiles engineered for severe acid service. High compressive strength and near-zero water absorption make them the standard lining for towers, tanks, and floors exposed to strong acids. Also known as acid resistant brick / acid proof plate.
- Standard brick — 230 × 113 × 65 mm
- Rectangle & narrow bricks — 113 × 113 × 65, 230 × 65 × 65 mm
- Wedge (radius) bricks — for curved tower walls, custom to tower diameter
- Ceramic plates / tiles — 100 × 100 × 10 up to 180 × 110 × 30 mm
- Acid resistance 99.8% · water absorption <1% · compressive strength ≥700 kg/cm²
Applications: sulfuric acid plants, drying and absorption towers, reactor and tank linings, anticorrosive pools and pits, channels and trenches, acid-resistant flooring, battery / charging rooms
Documentation
Catalogs and technical documentation are available upon request. Please contact our team for product information, specifications, and documentation.
Contact Us
ACID PROOF CEMENT

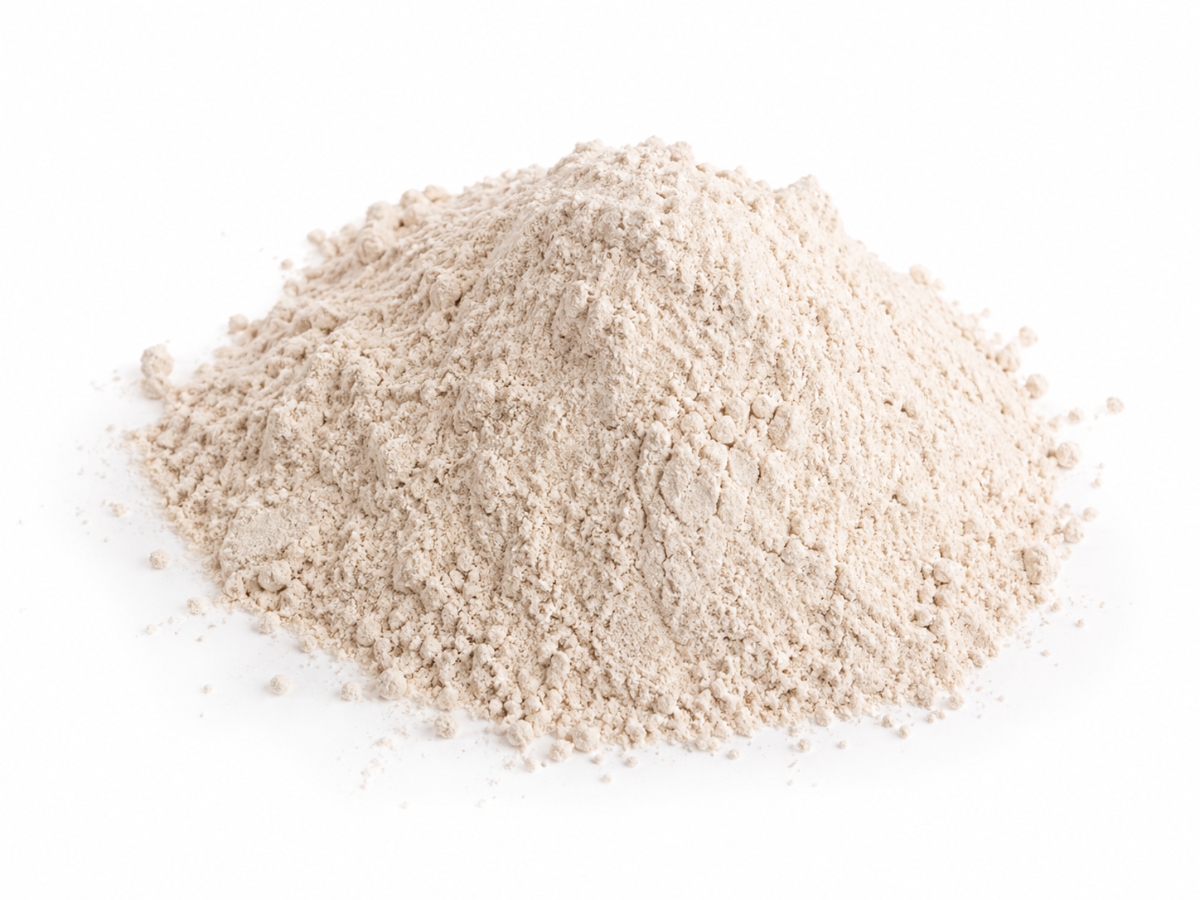

Acid Proof Cement
One potassium-silicate acid proof cement that both beds and joints acid resistant brick and tile — supplied together with the brick, so the whole acid-tight lining comes from a single source.
- Potassium-silicate acid proof cement — beds and joints both brick and tile
- Compressive strength >30 MPa · adhesion to tile >1.2 MPa
- Typical coverage — 15–18 kg/m²
Applications: bedding and jointing acid proof brick and tile linings in towers, tanks, floors, and channels
Documentation
Catalogs and technical documentation are available upon request. Please contact our team for product information, specifications, and documentation.
Contact UsSIZES & DIMENSIONS
Sizes & Dimensions
| Type | Dimensions (mm) | Typical use |
|---|---|---|
| Standard brick | 230 × 113 × 65 | Tower, tank, and floor lining |
| Rectangle brick | 113 × 113 × 65 | Corners and infill courses |
| Narrow brick | 230 × 65 × 65 | Thin linings and channels |
| Wedge (radius) brick | Custom to tower diameter | Curved tower and vessel walls |
| Ceramic tile / plate | 100 × 100 × 10 to 180 × 110 × 30 | Floor and wall facing |
Wedge bricks are cut to your tower diameter. Other sizes available on request — send us your drawing or specification.
TECHNICAL PROPERTIES
Technical Properties
| Property | Value |
|---|---|
| Acid Resistant Brick & Tile | |
| Acid resistance | 99.8% |
| Water absorption | < 1% |
| Compressive strength | ≥ 700 kg/cm² |
| Acid Proof Cement | |
| Compressive strength | > 30 MPa |
| Adhesion to tile | > 1.2 MPa |
| Coverage | 15–18 kg/m² |
Frequently Asked Questions
What is the difference between acid resistant brick and acid proof tile?
They are the same dense ceramic material in different formats. Bricks are thicker and used as a structural acid-tight lining for towers, tanks, and floors, while tiles (acid proof plates) are thinner and used to face floors and walls. Both share the same acid resistance of 99.8%.
What sizes and thicknesses are available?
Standard bricks are 230 × 113 × 65 mm, with rectangle and narrow variants, plus wedge (radius) bricks cut to your tower diameter. Ceramic tiles and plates range from 100 × 100 × 10 mm up to 180 × 110 × 30 mm. See the sizes table above for the full range.
Can these be used for acid resistant flooring or battery / charging rooms?
Yes. Acid proof tiles and bricks are a standard choice for acid-resistant flooring, drainage channels, and battery or charging rooms where spilled acid attacks ordinary concrete. They are bedded and jointed with potassium-silicate acid proof cement for a fully acid-tight floor.
Which acids and chemicals do they resist?
Acid resistant brick and tile withstand sulfuric acid and most strong mineral and organic acids at high concentration, with an acid resistance of 99.8% and water absorption below 1%. They are used in sulfuric acid plants, drying and absorption towers, and reactor and tank linings.
Do you supply the jointing cement as well?
Yes. We supply the matching potassium-silicate acid proof cement that both beds and joints the brick and tile, so the complete acid-tight lining comes from a single source. Typical coverage is 15–18 kg/m².
How do I get a price or quotation?
Send us the brick or tile type, dimensions, and quantity you need, along with the service (tower, tank, or floor). We supply to your specification across Thailand and will return a quotation — use the inquiry button below or the contact page.
